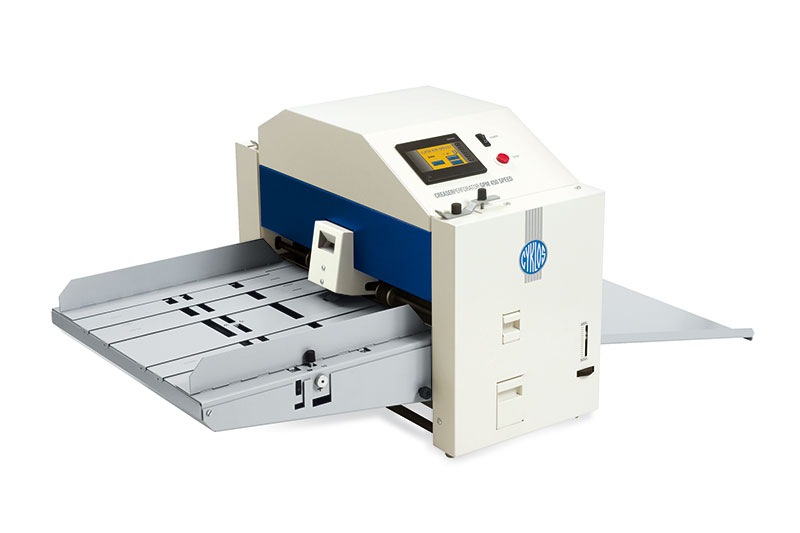

Cyklos Creasing/Perforating Machine GPM 450 Speed

450 SA, the new SPEED version provides a unique auto friction feed system enabling faster and higher output of creased and perforated sheets. – £POA

Categories: ,

Description

450 SA, the new SPEED version provides a unique auto friction feed system enabling faster and higher output of creased and perforated sheets.

  • reliable friction feeding with speed up to 2500 A4 sheets/A4
  • large work table and working width suitable for A2 paper formats
  • touch screen display for easy setting of distance and number of creases
  • possibility of programme storage
  • two widths of fine creasing channels
  • easily exchangeable creasing and perforating tools
  • high-quality anvil perforation
  • angle-adjustable paper stops on feeding table
  • adjustable feed pressure
  • telescopic feed table
  • batching
  • Working width 100-450mm
  • Weight of paper 80-450gsm (creasing), 80-250gsm (perforating)
  • Width of Crease 0.5mm or 1.0mm
  • Max. number of creases per sheet 15
  • Min./Max. Distance between creases 2mm/1000mm
  • Speed 2500 A4 sheets/hour
  • Dimensions L1250mm x W675mm x H520mm
  • Weight 90kg
  • Voltage/Frequency 230V/50Hz
